Description
PRODUCT CODE
1-Pole + N, 18mm

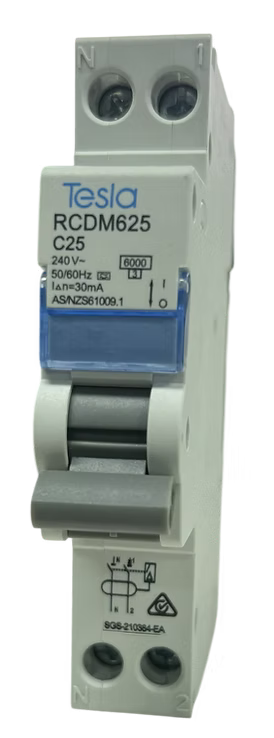

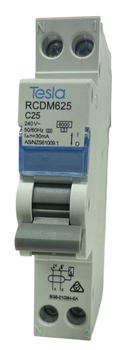

RCDM610 Tesla
RCDM616 Tesla
RCDM620 Tesla
RCDM625 Tesla
RCDM632 Tesla
Circuit Protection (RCD/MCB Combined)
Tesla Circuit Breakers are Non-Line / Load Sensitive
Meet ESV Additional Testing and verification requirements.
• Earth leakage, overload, overvoltage and short circuit protection
• Protects equipment connected to the RCBO and the unit’s circuitry.
• Use in domestic, commercial, and industrial installations.
• Installation on symmetrical DIN rail 35mm Panel Mounting
• Connection – Pillar terminal with clamp capacity: Rigid conductor up to 10mm2
| Standard | IEC/EN AS/NZS 61009-1 |
| Number of Poles | 1P+N 18mm |
| Rated Voltage | AC 230/240V +5% 50/60Hz |
| Rated Current | 10,16,20,25,32 |
| Rated Residual Operating Current | 30mA |
| Rated Residual Making & Breaking Capacity |
500A |
| Breaking Capacity | 6000A |
| Tripping Curve | C |
| Operating Characteristics | Type A |
| Mechanical Life | 10000 cycles |
| Electrical Lift | 4000 cycles |
| IP Rating | 20 |
